ELASTOMER-COATED SPHERES / SEALING & DAMPING

Rubber Coated Balls

Rigid-core balls with engineered rubber or polyurethane coatings for sealing, gripping, cleaning, damping, impact control and material handling.

Request a Quote ↗Contact SDBALLS U.S.

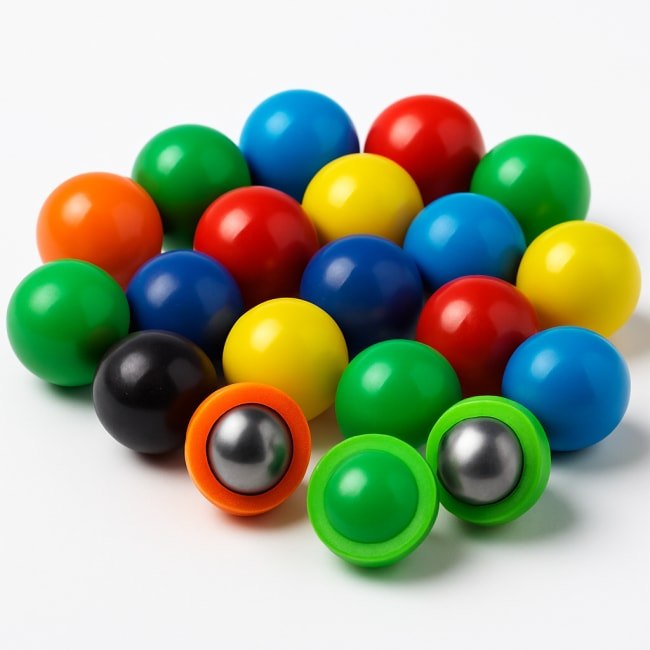

Rubber Coated Balls supplied by SDBALLS — PRODUCT REFERENCE / FINAL SPECIFICATION BY QUOTATION

PRODUCT OVERVIEW

What are rubber coated balls?

Rubber coated balls combine a metal, plastic or ceramic core with a bonded elastomer layer. The core supplies geometry and mass while the coating provides grip, compliance, sealing, damping or surface protection.

Coating polymer, Shore hardness, thickness, bond system, concentricity and fluid compatibility determine performance. NBR, EPDM, silicone, polyurethane and other compounds serve different oils, water, heat and abrasion conditions.

TECHNICAL SPECIFICATIONS

Start with measurable requirements.

Values below are product-family references. The quotation, drawing, agreed standard and inspection plan control the final supply specification.

Technical itemReference specification

MaterialMetal, polymer or ceramic core with NBR, EPDM, silicone, PU or custom elastomer

Diameter RangeCustom finished diameter and coating thickness by drawing

Precision GradeCommercial / custom concentricity and finished-diameter tolerance

ToleranceControlled by the agreed precision grade, drawing or purchase specification

HardnessCustomer-selected Shore A range; compound dependent

DensityMaterial-grade dependent; confirm before quotation

Surface FinishSmooth, matte, textured, ground or molded finish

Roundness / SphericityControlled according to the agreed precision grade and inspection method

Temperature ResistanceApplication, load, atmosphere and material-grade dependent

Chemical ResistanceCompound-specific; exact fluid, concentration and temperature required

PackagingBulk, small-quantity, container, bag, carton, export pallet or customized packing

Coating thicknessApplication-specific, with minimum process limits by diameter

BondChemically and mechanically prepared core-to-elastomer bond

InspectionFinished diameter, hardness, concentricity, adhesion and visual limits as agreed

PRODUCT SELECTION GUIDANCE

Compare materials before substituting.

Material selection affects load, wear, corrosion, temperature, precision, service life and total program cost.

Material optionPrimary advantageLimitationBest fit

NBR coatingGood oil and fuel resistanceWeathering and high-temperature limitsOil-handling and industrial sealing

EPDM coatingWater, steam, weather and ozone resistancePoor compatibility with many petroleum oilsWater systems and outdoor use

Silicone coatingWide temperature range and clean optionsLower abrasion and tear strength in some gradesFood, medical and thermal service

Polyurethane coatingHigh abrasion, tear and load performanceHydrolysis and chemistry are grade dependentMaterial handling and wear contact

KEY PERFORMANCE FEATURES

Performance that purchasing teams can verify.

Compliant sealing

Controlled hardness and thickness allow deformation against seats and surfaces.

Grip & traction

High-friction coatings support conveying, driving and cleaning functions.

Impact damping

Elastomer reduces noise, rebound and damage compared with bare metal contact.

Compound engineering

Polymer selection responds to oil, water, heat, ozone, wear and cleanliness.

TYPICAL APPLICATIONS

Specify the work the ball must perform.

Application names are starting points—not approval of universal suitability. Share the real medium, load, speed, pressure, temperature, life target and compliance needs.

Sealing & check valves

Compliant closure elements for compatible pressure and media.

Material handling

Grip balls, transfer elements and non-marking contact components.

Pipe & vessel cleaning

Cleaning balls and projectiles sized around pipe, deposit and fluid.

Impact & vibration control

Bumpers, dampers and energy-absorbing spherical components.

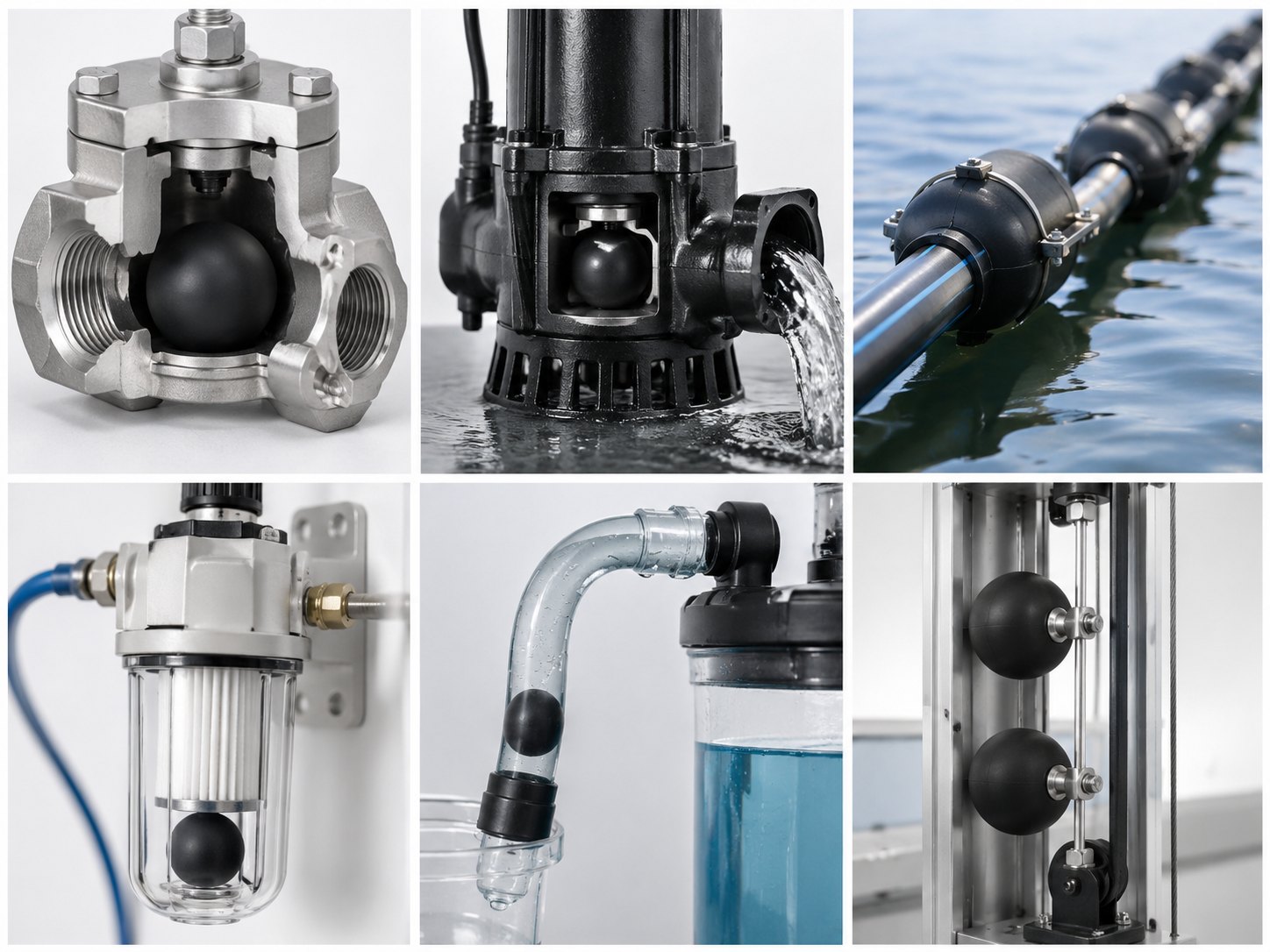

Typical applications for Rubber Coated Balls — REPRESENTATIVE APPLICATION ENVIRONMENTS

QUALITY & DOCUMENTATION

Build the evidence into the purchase order.

Document requirements should be defined before quotation so the inspection method, sampling level, traceability and external testing can be planned correctly.

Material identity or alloy / ceramic grade verified against the agreed purchase specification
Diameter, tolerance and geometry inspected using the method appropriate to the ordered precision level
Hardness, density, wall thickness or coating hardness tested when applicable to the product
Surface condition, finish and visual limits checked against approved samples or drawings
Roundness / sphericity or roller geometry inspected when specified
Lot identification and batch traceability maintained through controlled records
Material certificates and inspection reports available when agreed before quotation
Third-party testing, compliance documents and customer inspection plans supported by agreement

PACKAGING OPTIONS

Protect precision through delivery.

Final packing depends on material, diameter, surface sensitivity, order weight, storage time and destination.

Drawing-controlled identification

Part number, revision, material, lot and inspection status labeled as agreed.

Separated protective packing

Trays, cells or partitions protect machined surfaces, coatings and special geometry.

Small-quantity containers

Prototype and service quantities packed for practical North American receiving.

Export & OEM packing

Cartons, crates, pallets, customer labels and documentation coordinated by project.

Supported formats: bulk packaging · small-quantity packaging · plastic containers · bags · cartons · export pallets · customized packaging.

SMALL QUANTITY & SAMPLE ORDERS

Validate before you scale.

SDBALLS Industry Corp. supports North American customers with sample quantities, prototype requirements, testing programs and specialty ball inquiries.

Provide core, finished diameter, coating, Shore hardness, thickness, fluid, temperature, load and surface requirement. Compatibility and adhesion trials are recommended.

PrototypeTestingRepairR&DSmall batch production

Request Samples ↗Contact U.S. Support

PRODUCT FAQ

Answers for engineering and purchasing teams.

Which rubber compound should I choose?

NBR, EPDM, silicone and polyurethane have different oil, water, heat, ozone and abrasion behavior. Exact service conditions are required.

Can coating hardness be customized?

Yes, within compound and process limits. Specify Shore scale, target range, test standard and operating temperature.

How is the coating bonded to the core?

The core is prepared and bonded using a compound-specific chemical and mechanical process; adhesion testing can be defined.

Can you control finished diameter and concentricity?

Yes. Molded or ground finishes can be selected around tolerance, coating thickness, surface and quantity.

Can you provide material certificates and inspection reports?

Yes. State the required certificate, inspection method, sampling plan and report format before quotation so documentation can be included in the supply plan.

Do you support samples and small-quantity orders?

Yes. SDBALLS Industry Corp. supports North American prototype, qualification, repair, R&D and small-batch requirements, subject to material, size and production availability.
